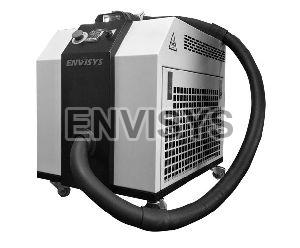

Temperature Thermal Forcing System

Temperature Thermal Forcing System
Business Type Manufacturer, Exporter, Supplier

Preferred Buyer From

Location Anywhere in India

A micro cooling unit designed to simulate the various working temperature conditions on the electronic chip board.

Stated Power Cooling Capabilities:

  • Cool power: 0°C @ 700W, -40°C @ 275W.
  • Temperature range: -40°C to 30°C.
  • Temperature accuracy: +/- 2-3°C.
  • Cooling: Two stage air cooled refrigeration to achieve -40°C.
  • Single Set Point PID Controller.


Custom Temperature / Thermal Forcing System Manufacturers & Suppliers USA, UK, Russia

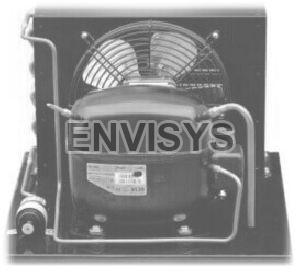

  • Mechanical Cascade refrigeration system with hermetic compressor/s..
  • Hermetic compressor/s are mounted on vibration-free compression spring/rubber bush tightened with desired torque level.
  • Eco friendly Non-CFC refrigerants of R-404a & R-23 air-cooled refrigeration system (Optional water cooled).


Features

  • Precise Temperature Accuracies with Reliable Test Results.
  • Temperature Limits: -40 °C to 30 °C.
  • Temperature Accuracies: ±2-3°C.
  • Temperature Rate of Change: 20-25 deg /min (Non-linear).
  • Maintenance Free Access to The System.
  • Self-Sufficient System.
  • Compact with small footprints suitable for any space constraint laboratories.
  • Low decibel system.
  • Suitable for testing electronic chips / devices.
  • Environmental friendly refrigerants.
  • Efficient heating.
  • Microprocessor based single set point PID temperature controller with data logging.
  • Flexible hose up to 2.5-3.0m
  • Interchangeable heads according to chip size.
  • Inbuilt electrical control panel with switchgear system.

Specimen dimensions: Variable from W 35MM X D 35MM to 60 x 60mm Cooling head dimensions: Interchangeable according to dimensions.Number of specimens: 1 Numbers tested at a time.

Read More...


System General

Maximum Temperature +40ºC
Minimum Temperature -40ºC
Temperature Accuracy <2.0º C
Typical Transition Rates 25ºC to 0ºC in, <2-3 minutes
Temperature Sensor T-type Thermocouple
DB Rating 63-65 d BA

System Requirements

Electrical/230/240 VAC ±10% 50/60 Hz, single phase, 12A Max.
Ambient Temperature 5ºC to 25 ºC (40 to 77ºF)
Ambient Humidity 20% to 95% RH

Mechanical Dimensions

System Dimensions: L800mm x W 600 mm x H 750mm Approx.
System Weight: 100-120 KG
Thermal Head (mm): 40mm
Thermal Head Hose: 2.5 - 3.0 meter.
